性能參數表
 |
KHQ-1500L |
KHQ-2000L |
KHQ-2500L |
KHQ-3000L |
KHQ-4000L |
KHQ-5000L |
KHQ-6000L |
KHQ-8000L |
KHQ-10000L |
KHQ-15000L |
|
額定風量（m3/h） |
1500 |
2000 |
2500 |
3000 |
4000 |
5000 |
6000 |
8000 |
10000 |
15000 |
|
出口靜壓（Pa） |
150 |
200 |
220 |
220 |
240 |
265 |
280 |
300 |
350 |
380 |
|
熱交換率（%） |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
|
噪 聲dB（A） |
50 |
54 |
52 |
53 |
56 |
58 |
62 |
64 |
65 |
68 |
|
裝機功率（KW） |
0.32×2 |
0.45×2 |
0.55×2 |
0.8×2 |
1.1×2 |
1.1×2 |
1.5×2 |
2.2×2 |
4.0×2 |
5.5×2 |
|
額定電壓（V） |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
|
重量（Kg） |
230 |
270 |
320 |
300 |
350 |
450 |
600 |
600 |
720 |
980 |

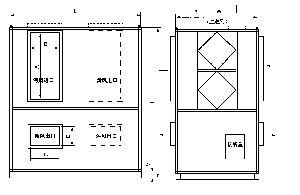

外形尺寸表
|
|
外形尺寸 |
進風口法蘭尺寸 |
出風口法蘭尺寸 |
M | ||||
|
L |
W |
H |
A |
B |
C |
D | ||
|
KHQ-1500L |
1250 |
560 |
1250 |
400 |
200 |
280 |
210 |
63 |
|
KHQ-2000L |
1250 |
680 |
1450 |
400 |
250 |
280 |
210 |
63 |
|
KHQ-2500L |
1500 |
680 |
1450 |
400 |
320 |
250 |
260 |
63 |
|
KHQ-3000L |
1500 |
680 |
1510 |
550 |
250 |
400 |
350 |
63 |
|
KHQ-4000L |
1600 |
780 |
1510 |
650 |
250 |
500 |
350 |
63 |
|
KHQ-5000L |
1500 |
1000 |
2110 |
540 |
810 |
500 |
400 |
80 |
|
KHQ-6000L |
1800 |
1000 |
2110 |
600 |
810 |
630 |
400 |
80 |
|
KHQ-8000L |
1600 |
1400 |
2415 |
600 |
950 |
700 |
500 |
80 |
|
KHQ-10000L |
2000 |
1400 |
2565 |
740 |
950 |
800 |
630 |
80 |
|
KHQ-15000L |
2500 |
1400 |
2565 |
1000 |
1000 |
850 |
650 |
80 |
